HP-A/B/J Series
Aggregate Batching Machine
Aggregate blending system with steel aggregate bins for concrete batching plants

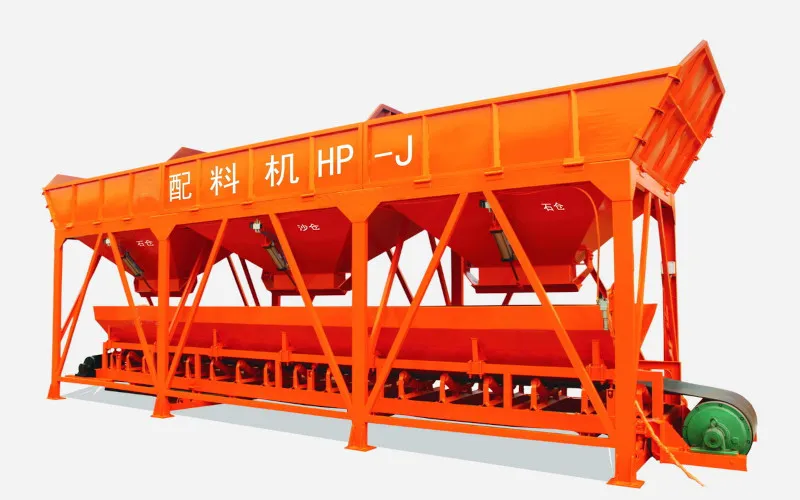

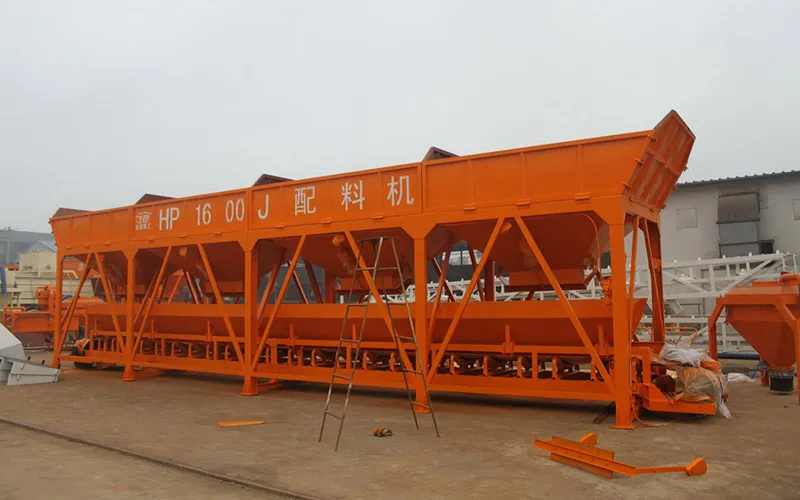

The HP-J series aggregate batching machine is mainly used in combination with skip hoist mixers to form compact concrete batching plants. Multiple aggregate bins are installed on the frame to store sand, gravel, and other aggregates separately. It is suitable for small construction sites and precast concrete component plants.
- The aggregate bins feature sectionally assembled side panels, a modular design that facilitates streamlined transportation and rapid on-site installation.

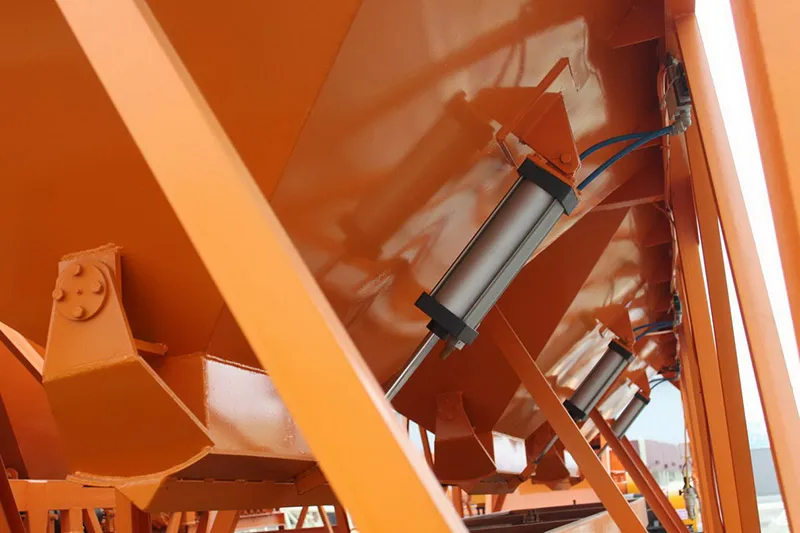

- The batcher utilizes pneumatic batching, which delivers high-speed processing without compromising on measurement accuracy.
- The integration of a belt conveyor discharge ensures that material unloading is both rapid and residue-free.
Technical Parameters
| Model | |
|
|
| Weighing mode | Cumulative weighing | Cumulative weighing | |
| Weighing hopper capacity (L) | 1200 | 1600 | |
| Batching capacity (m³/h) | 72 | 96 | |
| Single aggregate bin capacity (m³) | 4.5 | 6 | |
| Weighing accuracy | ±2％ | ±2％ | |
| Total power (kW) | 3 bins | 7.8 | 8.1 |
| 4 bins | 7.8 | 8.1 | |

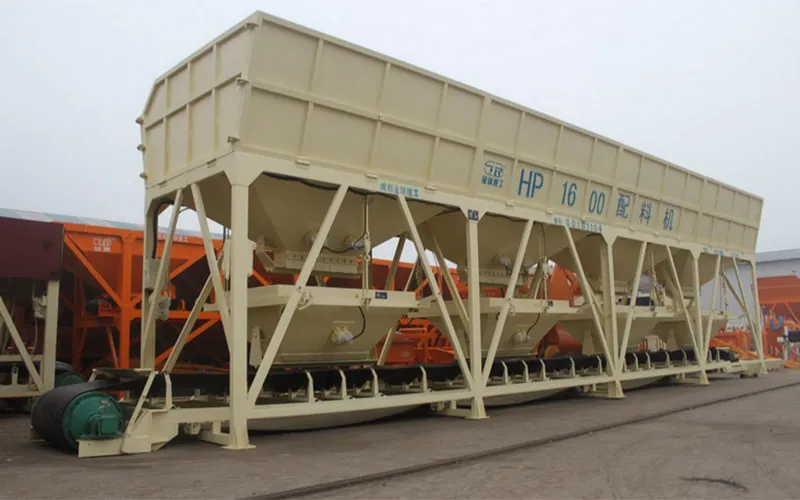

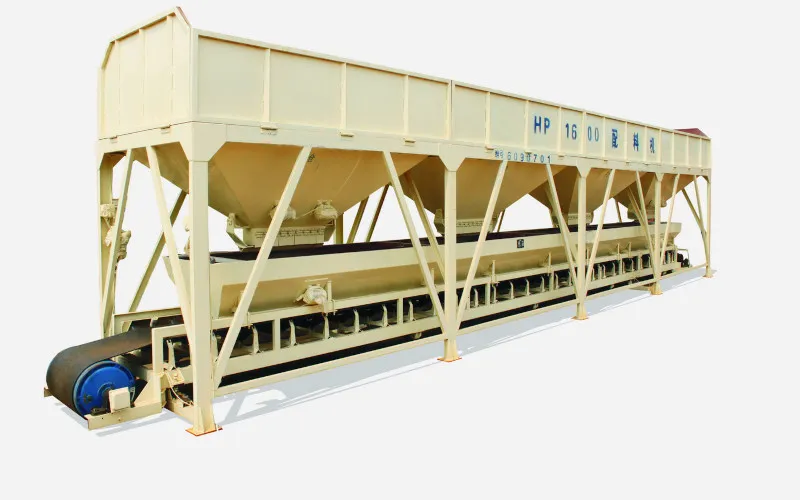

The HP-A series aggregate batching machine uses sectional assembled aggregate bin panels for easy installation. It is suitable for small- and medium-scale concrete construction sites and precast concrete plants.
- By leveraging pneumatic batching, the batching machine achieves high-speed processing with exceptional accuracy.
- The integrated belt conveyor ensures that material discharge is both rapid and residue-free.
- The weighing system offers the flexibility of both cumulative and individual weighing configurations to accommodate diverse batching requirements.
Technical Parameters
| Model | |
|
|
|
|
|
|
| Weighing mode | Cumulative weighing | Individual weighing | Cumulative weighing | Individual weighing | |||
| Weighing hopper capacity (L) | 1600 | 2000 | Bins×800 | Bins×1000 | 2400 | Bins×1200 | |
| Batching capacity (m³/h) | 96 | 120 | 96 | 120 | 144 | 144 | |
| Single aggregate bin capacity (m³) | 6/8/10 | 6/8/10 | 8/10/12/14 | 8/10/12/14 | |||
| Weighing accuracy | ±2％ | ±2％ | ±2％ | ±2％ | |||
| Total power (kW) | 3 bins | 7.8 | 7.8 | 11.3 | 11.3 | ||
| 4 bins | 8.1 | 8.1 | 15.6 | 11.6 | |||

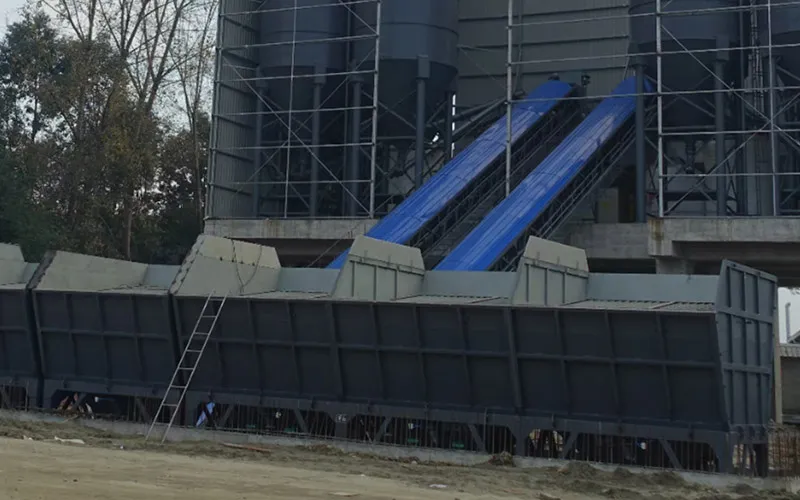

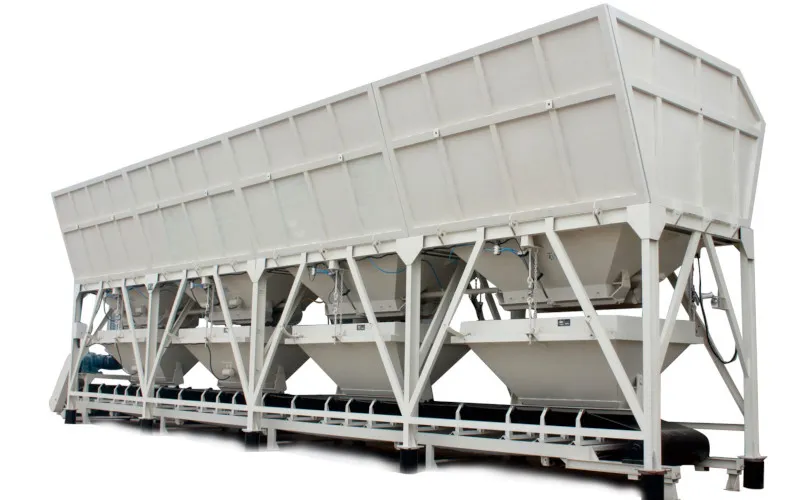

The HP-B series aggregate batching machine supports flexible configuration of aggregate bin types and quantities according to project requirements. Steel aggregate bins use sectional assembled side panels for easy installation. It is suitable for medium- and large-scale construction projects, ready-mix concrete plants, and precast concrete factories.
- The batching machine features pneumatic adjustable gates to accommodate various batching requirements.
- To ensure operational reliability, anti-jamming devices are fitted at the bin outlets to prevent blockages and ensure full gate closure.

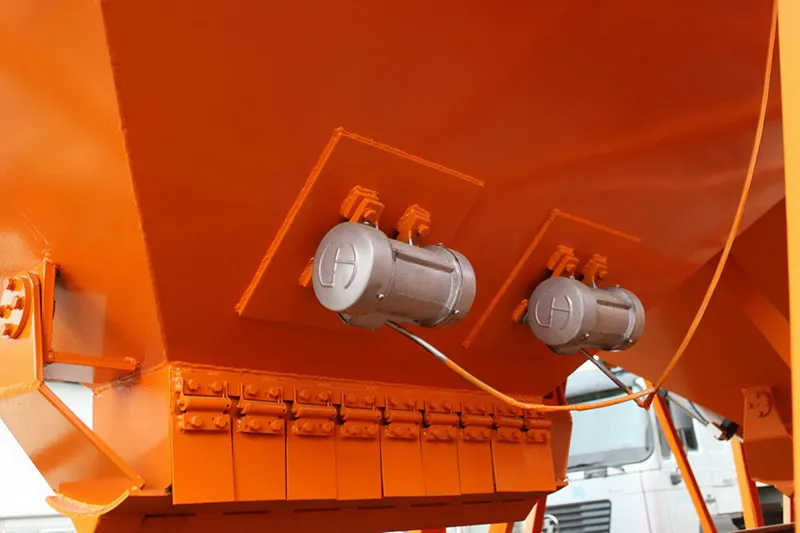

- The sand bins are equipped with vibrators to overcome wet sand adhesion, guaranteeing a smooth and consistent material discharge.
Technical Parameters
| Model | |
|
|
|
|
| Weighing mode | Individual weighing | Individual weighing | Individual weighing | Individual weighing | |
| Single aggregate bin capacity (m³) | 17 | 22 | 30 | 32 | |
| Weighing hopper capacity (L) | Bins×1600 | Bins×2400 | Bins×3200 | Bins×3600 | |
| Batching capacity (m³/h) | 192 | 288 | 384 | 432 | |
| Weighing accuracy | ±2％ | ±2％ | ±2％ | ±2％ | |
| Total power (kW) | 4 bins | 16 | 16 | 16 | 16 |
