HP-D Series
Aggregate Batching Machine
Aggregate blending system with concrete wall aggregate bins for concrete batching plants
- Bin Structure Concrete ground bins for max storage
- Application Scale Medium to Large-scale projects

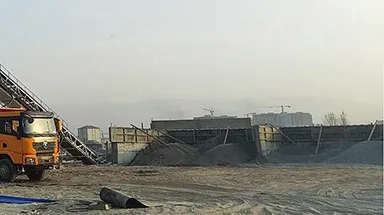

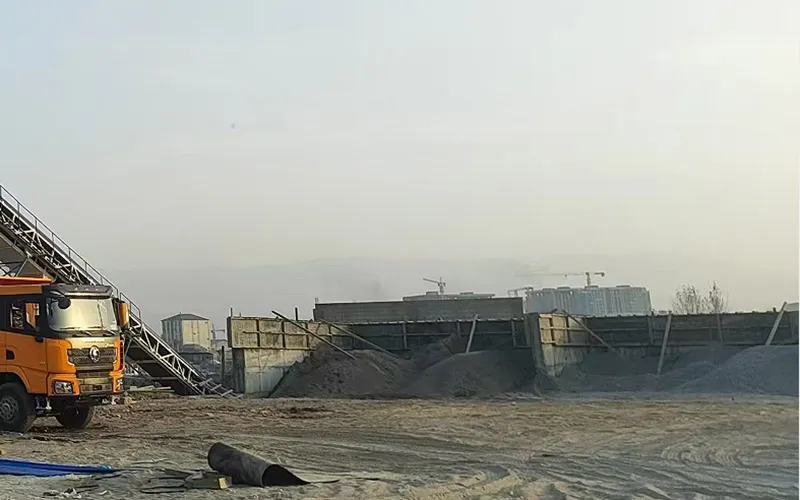

The HP-D series aggregate batching machine supports flexible configuration of aggregate bin quantity based on project requirements. The ground-type aggregate bins adopt reinforced concrete wall structures with large storage capacity. This concrete wall aggregate bin batcher is suitable for medium- and large-scale construction projects, ready-mix concrete batching plants, and precast concrete component factories.

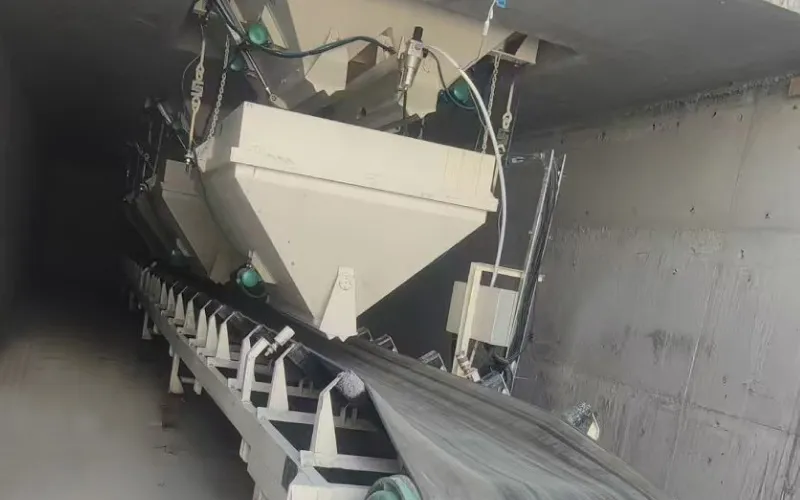

- The batching machine features pneumatic adjustable gates to accommodate various batching requirements.
- To ensure operational reliability, anti-jamming devices are fitted at the bin outlets to prevent blockages and ensure full gate closure.
- The sand bins are equipped with vibrators to overcome wet sand adhesion, guaranteeing a smooth and consistent material discharge.
Technical Parameters
| Model | |
|
|
|
|
| Weighing mode | Individual weighing | Individual weighing | Individual weighing | Individual weighing | |
| Aggregate bin type | Concrete ground bin | Concrete ground bin | Concrete ground bin | Concrete ground bin | |
| Weighing hopper capacity (L) | Bins×1600 | Bins×2400 | Bins×3200 | Bins×3600 | |
| Batching capacity (m³/h) | 192 | 288 | 384 | 432 | |
| Weighing accuracy | ±2％ | ±2％ | ±2％ | ±2％ | |
| Total power (kW) | 4 bins | 18 | 18 | 18 | 18 |
