JN-AH Series for Concrete Plants

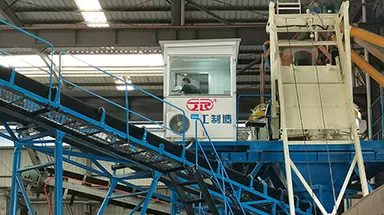

Planetary Concrete Mixer with Skip Hoist
- Discharge Capacity 0.5 – 1.5 m³ / batch
- Key Feature Compact self-loading design for high-homogeneity mixing

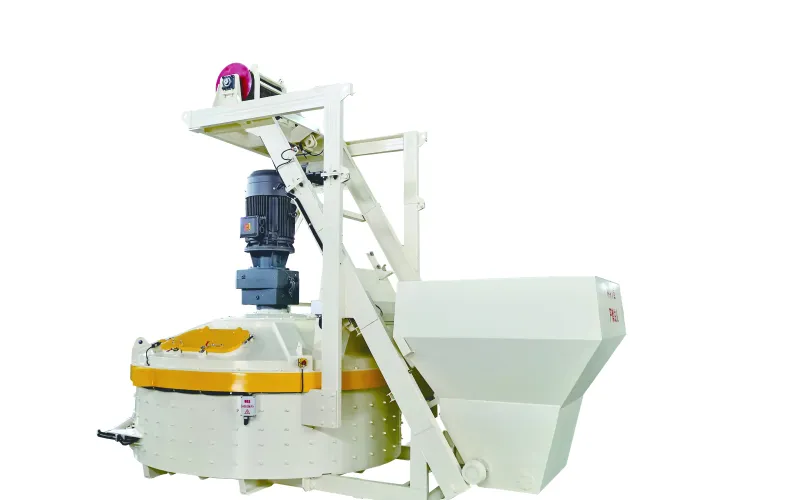

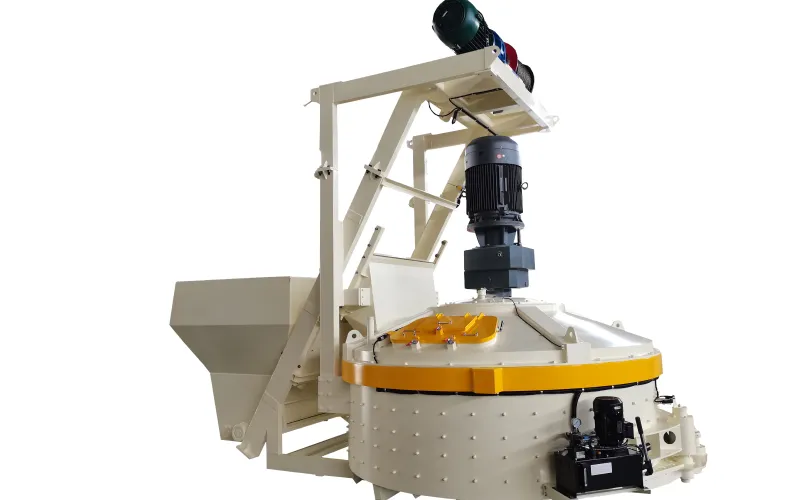

The planetary concrete mixer with skip hoist uses electric winch lifting for material feeding and is equipped with a vertical shaft planetary mixer. The mixer features a compact structure, small footprint, and easy installation. Planetary mixing ensures more uniform material distribution. When integrated with admixture, water, and cement weighing systems as well as aggregate batching machines, it forms a combined batching plant that significantly improves production efficiency and concrete quality. It is suitable for mixing dry, semi-dry, high-performance, and high-strength concrete.
The mixer can be configured with two discharge gates according to on-site production line requirements, allowing one mixer to supply multiple production lines. This type of mixer is mainly used in small- and medium-scal.
Technical Parameters
| Model | |
|
|
| Charging capacity (L) | 1125 | 1500 | 2250 |
| Discharging capacity (L) | 750 | 1000 | 1500 |
| Theoretical capacity (m³/h) | 35 | 50 | 75 |
| Max. aggregate size (mm) | 60 | 60 | 80 |
| Mixing motor power (kW) | 30 | 37 | 55 |
| Hoist motor power (kW) | 7.5 | 11 | 18.5 |
| Water pump motor power (kW) | 2.2 | 2.2 | 2.2 |
| Transport dimensions (without chassis, L×W×H, mm) | 3900×2450×2700mm | 4600×2610×2700mm | 5100×2900×2800mm |
| Discharge height | 2.2m standard/raised height for mixer truck loading / customized height | ||
Features

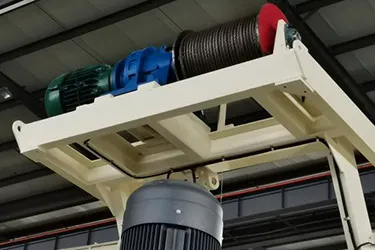

The lifting system adopts a top-mounted long-drum electric winch, meeting different installation height requirements. Single-layer steel wire rope winding effectively extends wire rope service life.

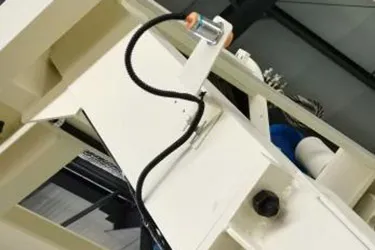

The first stage upper limit switch for hoisting power-off uses an electronic proximity switch, improving switch service life. Multiple stage limit switch protections are installed to prevent skip bucket over-travel and ensure safe operation.
Established in 1991, Jin Rui is a professional concrete plant manufacturer with over 30 years of industry experience. From stationary concrete plants to integrated concrete plants, our concrete equipment serves various construction projects of high-speed railways, bridges, and airports, delivering reliable concrete production solutions tailored to different construction cycles and site conditions.
